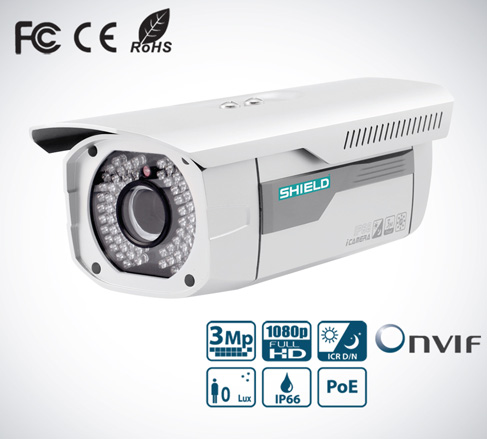

| MODEL |
SH-IPHFWI2300P |
SH-IPHFWI2300N |
| General |
|
| Processor |
TI DaVinci Series DSP |
| Operating System |
Embedded Linux |
| Resource |
Simultaneous Remote Monitoring,
Local Recording, and Remote Control |
| User Interface |
Web, CMS(DVMS/PVMS), MSS, NVR |
| Camera |
|
| Image Sensor |
1/2.8″ 3.0MP SONY PS Exmor CMOS |
| Effective Pixels |
2096(H)x1561(V) |
| Electronic Shutter |
Auto/Manual, 1/25~1/10000s |
Auto/Manual, 1/30~1/10000s |
| Min. Illumination |
0.2Lux/F1.6(Color), 0Lux/F1.6(B/W, IR ON) |
| Signal Noise Ratio |
>50dB |
| Gain Control |
Auto/Manual |
| White Balance |
Auto/Manual |
| Day/Night |
ICR |
| Lens |
CS Mount, Auto Iris, 8~16mm/F1.6 |
| Video |
|
| Video Compression |
H.264/MJPEG |
| Image Resolution |
3.0M(2048×1536)/1080P(1920×1080)/
720P(1280×720)/D1(704×576)/
CIF(352×288)/VGA(640×480) |
| Encoding Speed |
Main Stream:
3.0M(1~20fps),
1080P/720P/D1/CIF/
VGA(1~25fps) |
Main Stream:
3.0M(1~20fps),
1080P/720P/D1/CIF/
VGA(1~30fps) |
Extra Stream:
D1/CIF(1~25fps) |
Extra Stream:
D1/CIF(1~30fps) |
| Bit Rate |
160K~8Mbps |
| Snapshot |
Fastest 1fps JPEG Capture |
| Video Format |
PAL |
NTSC |
| Analogue Video Format |
1 channel BNC(1.0Vp-p, 75Ω) |
| Audio |
|
| Audio Compression |
G.711a / G.711u / PCM |
| Bit Rate |
128kbps/64kbps/10.2kbps |
| Input |
1 channel RCA |
| Output |
1 channel RCA |
| Network |
|
| Ethernet |
RJ-45 (10/100Base-T) |
| Network Functions |
HTTP,TCP/IP,ARP,IGMP,
ICMP,RTSP,RTP,UDP,RTCP,SMTP,
FTP,DHCP,DNS,DDNS,PPPOE,
UPNP,NTP,Bonjour,SNMP |
| Remote Operation |
Monitor, PTZ Control,
Playback, System Setting, File Download,
Log Information, Maintenance & Upgrade |
| Auxiliary Interface |
|
| MicroSD Card |
Max 32GB, local storage |
| Alarm |
1 Input / 1 Output |
| Environmental |
|
| Power Supply |
DC12V(AC24V optional), PoE |
| Power Consumption |
<15W |
| IR LEDs |
20~30 meters |
| Ingress Protection |
IP66 |
| Operating Environment |
-10°C~+60°C, 10%~90% |
| Dimension |
288.3mm x 118.3mm x 101mm |
| Weight |
2.5Kg |
